ผ้าม่านแยก
Created with Pixso.

Electric Control System Gym Divider Curtain with High Strength Fabric and 5-8 Years Warranty

Electric Control System Gym Divider Curtain with High Strength Fabric and 5-8 Years Warranty

ชื่อแบรนด์: Flyon
เลขรุ่น: หารม่าน
MOQ: 50 ตารางเมตร
ราคา: 46-100 dollars per SQM
เงื่อนไขการจ่ายเงิน: ที/ที, เวสเทิร์นยูเนี่ยน
ความสามารถในการจําหน่าย: > = 50000 sqm/เดือน
ข้อมูลรายละเอียด
สถานที่กำเนิด:
จีน
ได้รับการรับรอง:
CE and EN12727:2016
วัสดุ:
PVC / ผ้าที่มีความแข็งแรงสูง
สี:
สีที่กำหนดเอง
ลวดลาย:
ปรับแต่งได้
การรับประกัน:
5-8 ปี
การระบายอากาศ:
> 45%
ขนาดแพ็คเกจเดียว:
35x35x10 ซม.
รายละเอียดการบรรจุ:
บรรจุมาตรฐาน
สามารถในการผลิต:
> = 50000 sqm/เดือน
เน้น:

Electric Control System Gym Divider Curtain

,

High Strength Fabric Dividing Curtain

,

5-8 Years Warranty Sports Hall Divider

รายละเอียดสินค้า
Electric Control System Gym Divider Curtain with High Strength Fabric and 5-8 Years Warranty
High-quality gym divider curtains and netting systems designed for safety, durability, and environmental sustainability.
Single Curtain System Specifications
Product Name Divider Curtain Total Hanging Weight ≤ 2.5 kg/m
Maximum Height 12m Hanging Spacing ≤ 3m
Maximum Width 36m Maximum Bearing Capacity (per lifting point) ≤ 80kg
Maximum Area 300m² Maximum Hanging Weight ≤ 750kg
Color Choices
Electric Control System Gym Divider Curtain with High Strength Fabric and 5-8 Years Warranty 0 Electric Control System Gym Divider Curtain with High Strength Fabric and 5-8 Years Warranty 1
Model Options
Electric Control System Gym Divider Curtain with High Strength Fabric and 5-8 Years Warranty 2
Safety Requirements
• A safety gap of at least 50 cm must be left between this partition curtain system and the adjacent partition curtain or wall.
• A safety distance of at least 15 cm must be left on the side that does not contain a motor system.
• A minimum of 5 cm of clearance must be left between the bottom of the partition curtain and the ground.
Electric and Control System
High-performance drum motor (220V, 450W, 120N/m) with internal planetary gear reducer, up and down brake limiter, push-button limit switch, automatic reset and thermal overload protection system integrated into the middle coiling drum. Ensures stable and reliable operation.
Product Advantages
  • Double curtains made of high-quality PVC for superior sound absorption
  • Partial mesh design allows natural light transmission
  • Complete system includes all required materials, parts, and aluminum truss load-bearing structure
  • Environmentally friendly, tear-resistant, high-strength, and fire-resistant materials
  • Simple to use with multiple configuration options available

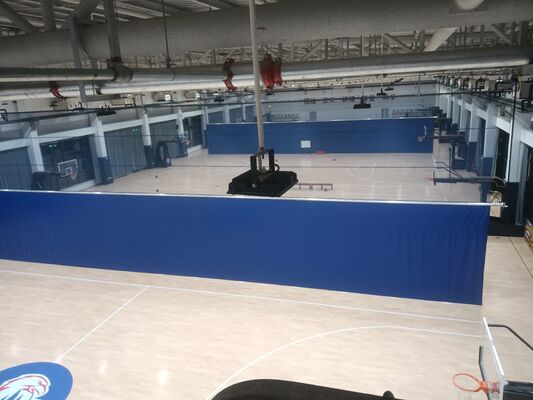

Project Presentation
Electric Control System Gym Divider Curtain with High Strength Fabric and 5-8 Years Warranty 3 Electric Control System Gym Divider Curtain with High Strength Fabric and 5-8 Years Warranty 4
